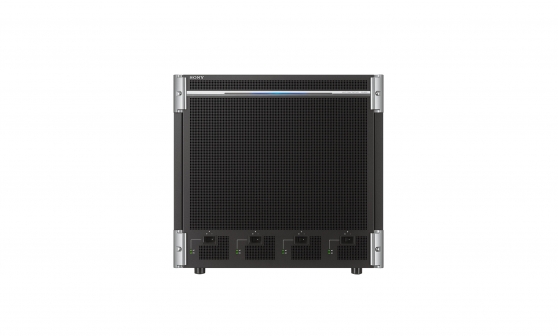

Sony XKS-8215, spesifikasjon:
Powerful switcher sits at the heart of IP Live and 4K and HD production operations
The XVS-8000 multi-format video switcher delivers massive benefits in terms of flexibility and operability for large production, giving you the ability to realise a powerful mixed environment with SDI and IP. Utilising the flexible ICP-X7000 X-Panel assignable modular design, you can configure the control panel to suit your specific operations.
The XVS-8000 provides you with a powerfull 4K production capability including DME. Advanced IP and SDI interfaces are compatible with the full XVS switcher line-up. Optional 100G IP interface boards support SMPTE ST 2110 standards, both in 4K and HD in a single stream, while 12G SDI interface boards increase flexibility further by enabling IP/SDI hybrid operation.
Ready for IP Live
A core component of Sony’s IP Live production system, the XVS-8000 supports the SMPTE ST 2110 suite of open standards for professional media over managed IP networks, enabling a mixed IP and SDI production environment. 100G IP boards support 4K and HD in a single stream, with on-board format conversion offered.
* Format converter on 100G IP board is available at the Input side only.
12G-SDI based live switcher
The XVS-8000 supports 12G-SDI interfaces functioning on-board format conversion for incoming video signal to offer greater options for applications such as in-house studios, OB vehicles and flypacks.
Powerful 4K production capabilities
4K production capabilities include 5 M/E, 40 inputs, 12 assignable outputs for 4K and format converter outputs, plus up to 10 full keyers and 10 sub keyers, enabling simultaneous 4K and HD operation. Key freeze is a new feature in 4K to store a still image in a 4K full keyer. With the optional mix effect board XKS-8215 the number of full keyers can be increased up to 20.
4K 3D Digital Multi Effects (DME)
The newly developed 4K DME board offers up to 2 channels of floating 4K 3D DME capability.
Evolutionary switcher controller
The XVS-8000 utilises the ICP-X7000 X-Panel for flexible panel configuration with a modular style design, OLED display, RGB XPT buttons and LCD button pad. The button layout is also re-designed. The X-Panel has a flexible mounting style for flat or curved mounting, or even for splitting into two positions.
Switcher Processor Options
Multi-format Switcher Processor
• XKS-S8110 – SDI Input Connector Board
• XKS-S8111 – SDI Input and FC Connector Board
• XKS-S8112 – 12G-SDI Input Board
• XKS-C8111 – 100G IP Input Board
• XKS-8160 – Output Processor Board
• XKS-S8165 – SDI Output Connector Board
• XKS-S8167 – 12G-SDI Output Board
• XKS-C8166 – 100G IP Output Board
• XKS-8210 – Mix Effect Board
• XKS-8215 – Mix Effect Board
• XKS-8440 – Frame Memory Board
• XKS-8460 – Format Converter Board
• XKS-8470 – HD DME Board
• XKS-8475 – DME Board
• XZS-8200 – Multi Program 2 Software
• XZS-8510 – Switcher Upgrade Software (4K Upgrade for 1st ME Board)
• XZS-8520 – Switcher Upgrade Software (4K Upgrade for 2nd ME Board)
• XZS-8530 – Switcher Upgrade Software (4K Upgrade for 3rd ME Board)
• XZS-8540 – Switcher Upgrade Software (4K Upgrade for 4th ME Board)
• XZS-8550 – Switcher Upgrade Software (4K Upgrade for 5th ME Board)
• XZS-8600 – HDR Conversion Software (for 12G-SDI Input Board)
Endringer i teknisk spesifikasjon kan forekomme. Teknisk spesifikasjon fra leverandør: Sony
