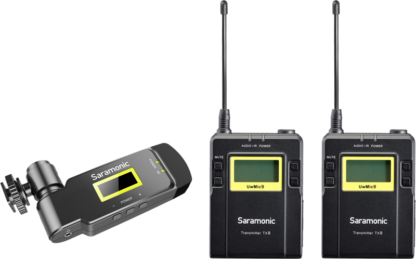

Saramonic UwMic9 Kit8 TX9+TX9+RX-XLR9 UHF Wireless Lavalier Microphone System

kr 4 159 eks. mva.

The Saramonic UwMic9 UHF wireless microphone system is intended for portable wireless operation and can be used in several environments for applications such as DSLR video, field recording, broadcast TV, electronic news gathering (ENG), on-the-spot interviews, and more.

Body-pack Transmitter UwMic9-TX9

This transmitter is a compact transmitter that employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a locking type microphone input connector. The RF power output can be switched among high, middle and low.

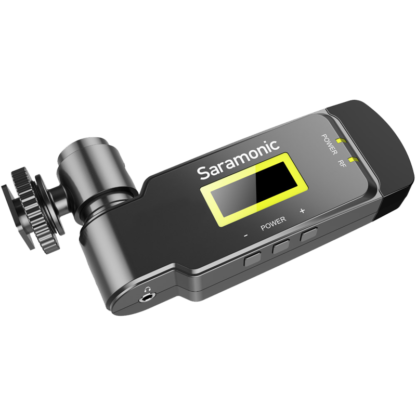

Plug-on Receiver UwMic9 RX-XLR9

The Saramonic UwMic9 RX-XLR9 is a compact XLR plug-on wireless receiver. It plugs directly into a video camera or recorder’s XLR microphone input without getting in the way of other accessories. The XLR connector rotates both clockwise and counter clockwise.

Leverandørlager: 2
Varenummer: 2001657 Kategorier: ,


Saramonic UwMic9 Kit8 TX9+TX9+RX-XLR9 UHF Wireless Lavalier Microphone System

Saramonic UwMic9 Kit8 TX9+TX9+RX-XLR9 UHF Wireless Lavalier Microphone System, features:

Saramonic UwMic9 UHF wireless microphone kit: The receiver can be powered by two AA batteries or DC power via the USB Type-C jack. It features a wide switching RF bandwidth, an easy-to-read LCD screen, a 3.5mm headphone jack and infrared synchronisation between transmitter and receiver.

Key features:

• Reliable, broadcast-quality audio

• Compact XLR receiver

• 514 MHz – 596 MHz

• 96 selectable channels

• Easy-to-read LCD displays

• Infrared detector

• Power lock switch


Channels: 96
Groups: A or B
Oscillator Type: PLL synthesizer
Frequency Range: 514 MHz – 596 MHz
Reference Deviation: +/- 5 kHz (-60dBV, 1kHz input)
Signal to Noise Ratio: 70 dB or more
Spur Suppression: -60 dB
Voice Delay: 12 ms
Antenna: 1/4λ wire antenna
Audio input connector: TX9:3.5mm mini jackHU9: none

TX-XLR9: XLR-3-11C type (female)

Reference audio input level: -60dBV (MIC input, 0dB attenuation)
Distortion: 0.5% or less
Weight: TX9: 170.9 x 63.5 x 30.0 mmHU9: 254.0 x 52.0 x 52.0 mm

TX-XLR9: 105.5 x 43 x 34.7 mm

Operating temperature:  0℃ to 50℃
Storage temperature:  -20℃ to +55℃

Endringer i teknisk spesifikasjon kan forekomme. Teknisk spesifikasjon fra leverandør: Saramonic
