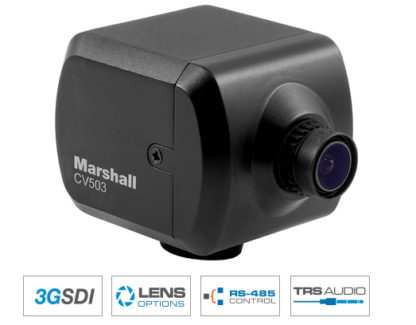

Marshall CV503 Miniature Full-HD Camera (3G/HDSDI)
The Marshall CV503 Full-HD Miniature Camera offers performance, flexibility, and value in a tiny form factor. Built around a next generation 2.5-Megapixel, 1/2.86-inch sensor, the CV503 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 59.94/50fps.
The CV503 utilizes a full-sized BNC (3G/HDSDI) output on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV503’s threaded M12 lens mount offers a wide range of prime and varifocal lens options.
The CV503 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.
Hirose Breakout Cable

- 1. RS-485 wire (+/-) Input
- 2. 12V Power 2.1 mm Plug (Center Contact)
- 3. Hirose connector plugs into camera
- 4. OSD Menu Control
- 5. TRS Audio Mic/Line-level input
CV503 Applications:
The CV503 is suitable for use in full-HD broadcast and Pro AV workflows including live broadcast productions, sportscast, newscast, reality television, concerts, corporate, government, courtroom, house of worship, and many more.
Specifications subject to change without notice. Features description and technical specification from Marshall
