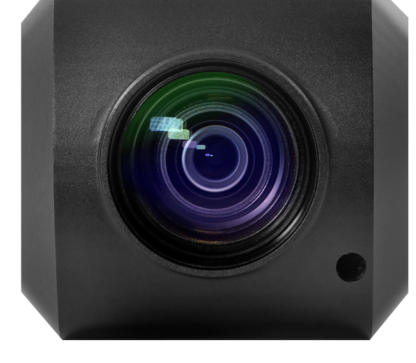

Marshall CV420-18X Compact 18x 4K Camera
The Marshall CV420-18X Compact 18x 4K Camera features 12G/6G/3G-SDI and HDMI2.0 simultaneous outputs, remote adjustable optical zoom range, and stereo audio embedding ability. CV420-18X delivers crystal-clear 4K images up to 4096x2160p with all usable framerates on one model with ultra-low light ability and industry leading low noise performance.
- 12.5 Megapixel 4K Sensor (1/1.7″)
- 18x Optical zoom (6.8mm~120mm) starting at 55° H.AOV – 3x Digital

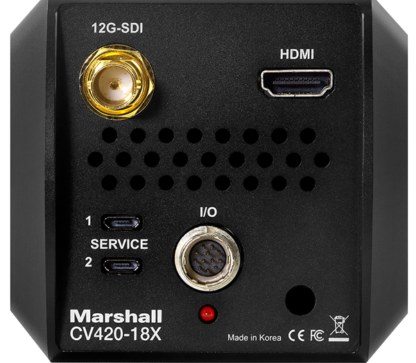

- 12G/6G/3G-SDI, and HDMI2.0 simultaneous outputs
- 4096x2160p, 3840x1260p, 1920x1080p, 1920x1080i and 1280x710p
- 60, 59.94, 50, 30, 29.97, 25, 24 and 23.98fps
- 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
- 12V Power cable included (7V~15V, 25.2W max)
Specifications
CV420-18X Specifications
Imaging Sensor
Image Sensor
1/1.7” Progressive (Approx. 12.4 Megapixel)
Effective Pixel 4096(H) x 2160(V)
Pixel Size1.85 (μm) x 1.85(μm)
Min. Illumination Day: Full Auto (0.8Lux), AE Manual Iris Open (0.4Lux). Night: Full Auto (0.04Lux), AE Manual Iris Open (0.02Lux)
Optics
Lens 18x Optical Zoom, f=6.8~120 mm, F1.61 ~ F4.13
Zoom 18x optical zoom + 3x digital zoom = 54x
Angle of View (H) 55 degrees (wide end) to 3.4 degrees (tele end)
Minimum Working Distance 150 mm (wide open), 1500 mm (tele end)
Functions
Focus Auto/ Manual
Exposure Auto / Shutter Priority/ Iris Priority/ AGC Priority/ Manual/ Bright
White Balance AWB (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / INDOOR / OUTDOOR / ONE PUSH / Manual
Light Modes DAY (color), NIGHT (b/w), AUTO switch
Electronic Shutter NTSC: 1/60~1/10000, PAL: 1/50~1/10000, SENS UP : OFF~X15
Adjustable Features Pedestal (Black Level), White Level, Privacy Mask, Image Mirror/Flip, Image Freeze, 2D/3D Noise Reduction, Edge Enhance, Defog, DIS (Digital Image stabilizer), Gamma Correct
Video Outputs
HDMI
4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080i: 60, 59.94, 50
1280 x 720p: 60, 59.94, 50
12G/6G/3G/HD-SDI
4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080i: 60, 59.94, 50
1280 x 720p: 60, 59.94, 50
Audio
Input
3.5mm TRS Stereo Audio Jack over I/O Cable (Mic and Line)
Sample Rate16/24/32 Bits
Control Interface
RS485SONY-VISCA protocols, PELCO-P/D
General
Operation Temperature -10°C ~ 50°C
Power Input 12VDC (7V to 15VDC)
Power consumption Max 25.2W
Mass 1.95 lbs (camera only), 2.18 lbs (with breakout cable)
Dimensions 232 (D) x 86 (W) x 80 (H) mm
Endringer i teknisk spesifikasjon kan forekomme. Teknisk spesifikasjon fra leverandør: Marshall
