Lynx RFR 1000-1

kr 4 798 eks. mva.

Rack Frame for 14 yellobriks (without power supply)

  • Compact 1 RU design
  • Will accommodate up to 14 yellobriks
  • External 12VDC power inputs
  • Primary and redundant power options
  • Power failure alarm GPO outputs
  • Adjustable 19” mounting brackets to recess frame

Ikke på lager

Tomt på lager

Varenummer: 3039074 Kategorier: ,


Lynx RFR 1000-1

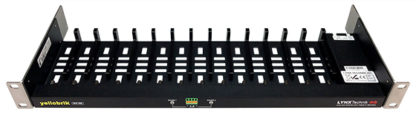

Lynx RFR 1000-1 is a compact 1 RU high mounting frame designed for yellobriks. Up to 14 yellobriks can be vertically mounted and are mechanically clamped securely in place. Each slot has its own integrated power connector on a central power bus.

The rack has two external 12VDC inputs for power, one for primary power, the second for redundant backup. An optional external power brick is available which provides enough power for any combination of yellobriks. A second unit can be used for redundant backup.

Primary and redundant power LEDs are located in the front panel as well as GPO connections for the power supply failure alarms.

While the frame will accommodate all yellobriks, it is ideally suited for the yellobrik fiber converters, which are typically used in larger numbers. Fiber connections are on the front and the SDI copper connection in the rear. A space is left open on one side to route the fiber loops from front to rear making for a very clean installation. The module fiber RX and TX activity LEDs can be seen clearly from the front with the modules installed. To protect the fiber cables and connections the 19” mounting brackets can be repositioned to recess the rack frame.

Specifications subject to change without notice. Features description and technical specification from LYNX Technik AG
